TI-401 Transport incubator

The solid structure of the incubator is designed to resist the strains of transportation and to absorb impacts. Undercarriages for transportation by an ambulance or for transport within hospital facilities.

The transparent double cover ensures thermal insulation properties and provides the health care staff with optimum visibility, for example during examination by integrated LED light.

Key features

Key Features

  • It maintains stable climatic conditions (air temperature, oxygen concentration, humidity) during the patient transport
  • Two independent processors and a sophisticated alarm system
  • Double transparent cover

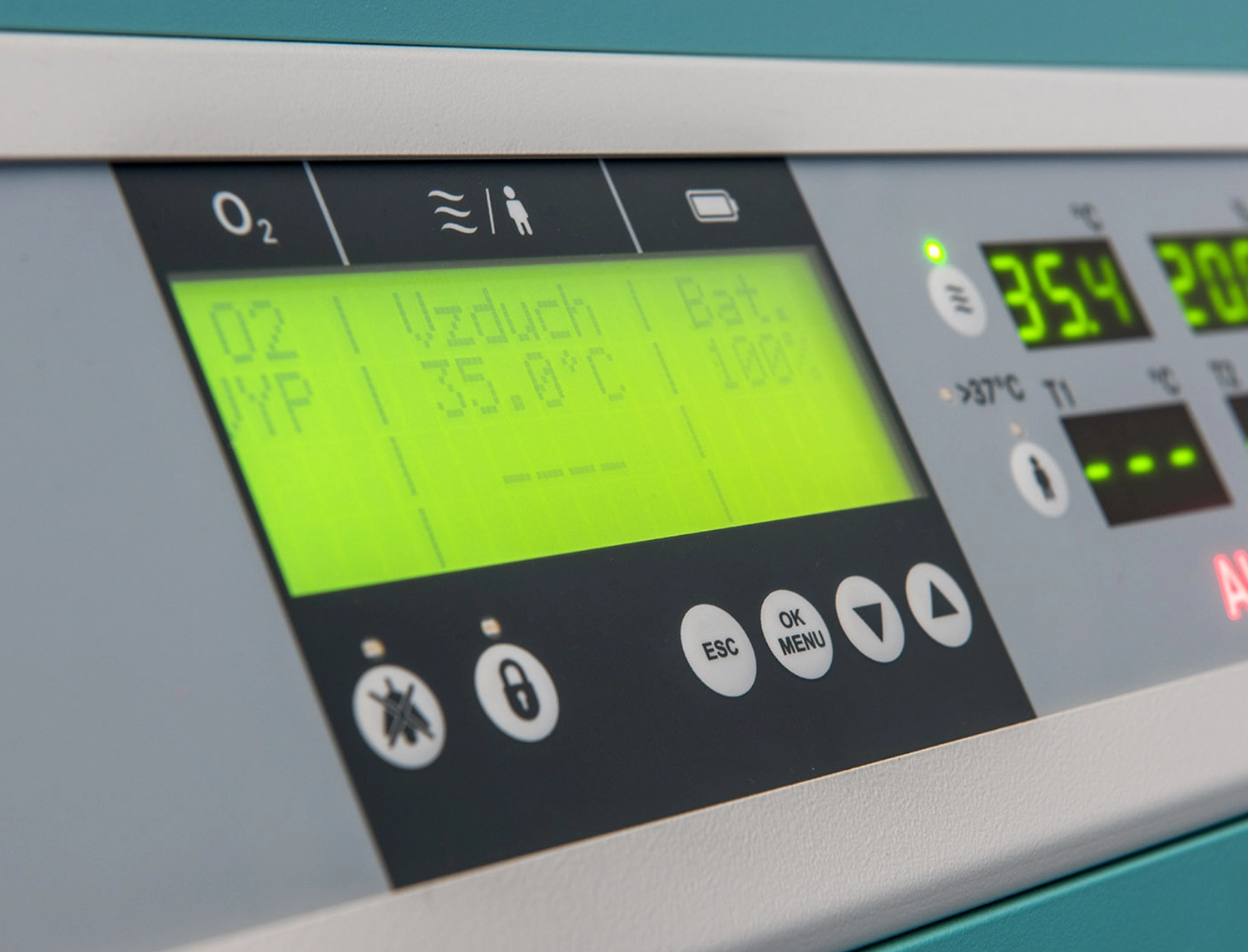

  • Optical and acoustic signalling of key parameters via alarm system

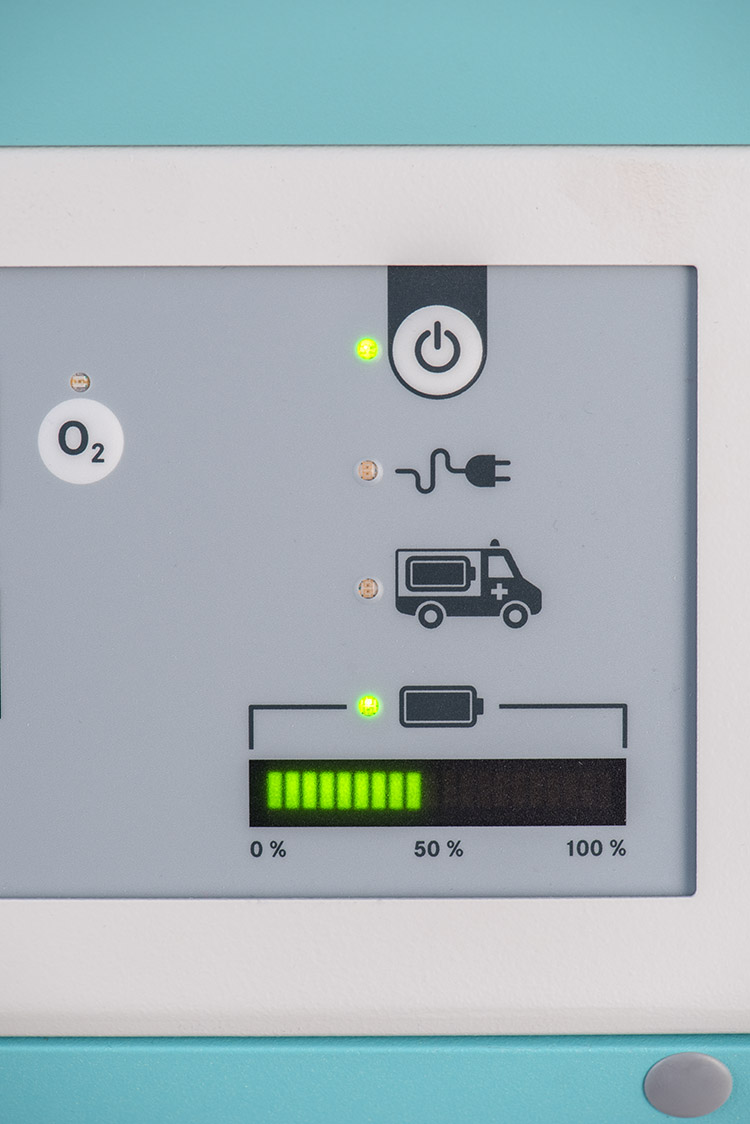

  • Power from the internal energy source of the incubator (for at least 4 hours), possibility to be powered from a car battery or from standard mains
  • Automatic charging of internal batteries when connected to a network
  • Possibility of  fitting with additional devices such as vital signs monitor  ventilator etc.
  • Safety belts and a special anti-stress mattress guarantee the child’s safety and comfort

Optional accessories

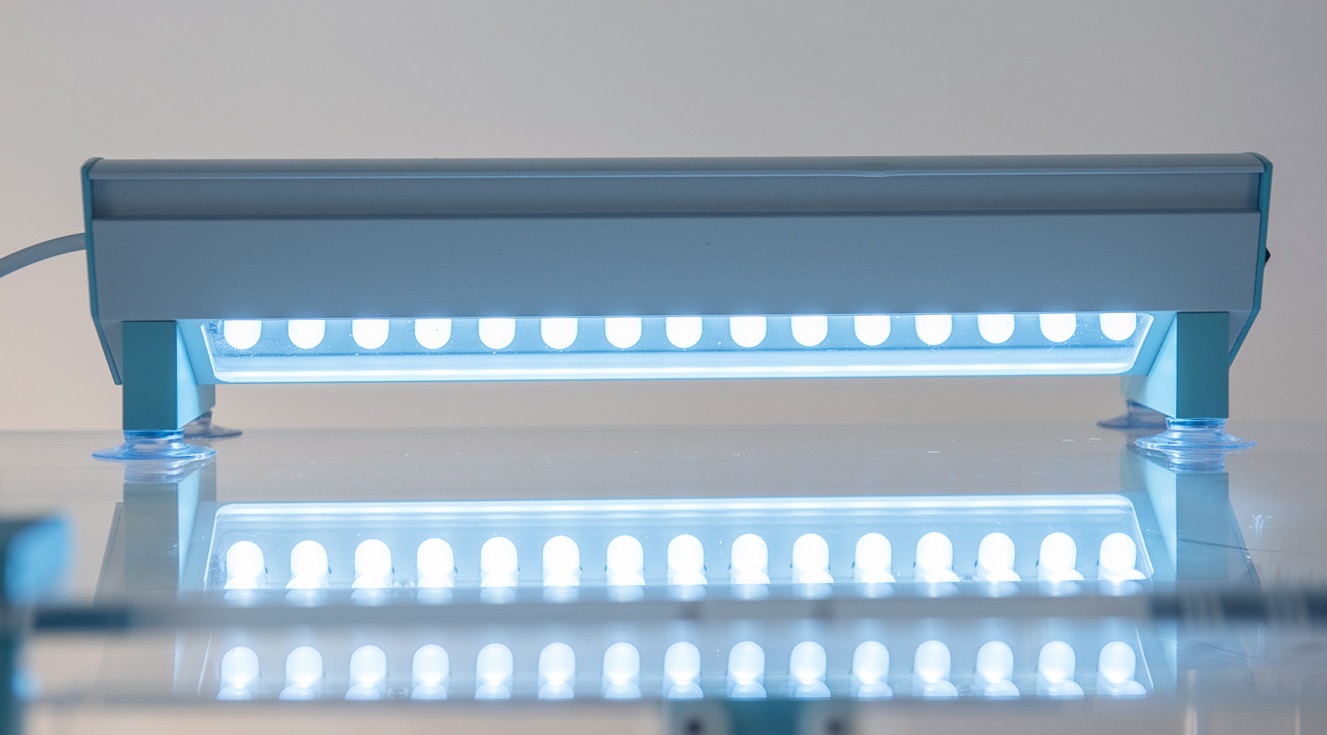

  • LED examination light
  • Fixing belts
  • IV pole with shelf and infusion holder
  • Cotton blanket
Full technical documentation

Undercarriages

PNT type carriage for transport within hospitals

Compact carriage enabling easy handling in hospital facilities, easily controllable, suitable for transporting from the delivery room to the ward.

Standard carriage for transporting in ambulances

Standard undercarriage for transporting in an ambulance.

Technical Specifications

Click to view full specifications
TECHNICAL SPECIFICATIONS: Transport Incubator TI-401
Unit type identification TI-401
Power voltage AC 110V – 230V, ~50/60 Hz
Internal battery: 1 pc 12V / 28Ah
External power source: DC 12V / 24V / 20A
Power input AC max. 400 VA
DC max. 300 W
Dimensions Height: 665 mm
Height with accessory bar: 910 mm
Length: 932 mm
Width: 576 mm
Weight 60 kg without carriage and accessories
72 kg without carriage and accessories, incl. 1 battery
100 kg with MEDIROL carriage
111 kg with PNT-401 carriage
210 kg with the maximum configuration of accessories
INTERNAL BATTERY OF THE DEVICE
Operation time with fully charged batteries Approx. 120 min - one Pb battery
Approx. 240 min - two Pb batteries
Battery recharging time Approx. 7 - 20 hours (according to the number of batteries)
Estimated battery life 1 – 3 years (depends on the way the device is used, charging, discharging..)
AIR TEMPERATURE MODE
Temperature setting 20.0 °C – 39.0 °C continuously, in steps of 0.1 °C
Range of displayed temperature values -8 °C to +58 °C
Air temperature setting above 37.0 °C Only for special operator intervention after temperature confirmation >37 °C
Lower and upper automatic setting of alarm limits ±2 ºC from the required set temperature
BODY TEMPERATURE MODE
Temperature setting according to the infant's body 34 °C – 38,5 °C
Accuracy of body temperature measurement ± 0,2 °C
Lower and upper automatic setting of alarm limits ±1 ºC from the required set temperature
O2 MODE
O2 concentration setting 21 - 60 %
Range of O2 concentration displayed on the screen 0 - 100 %
Accuracy of O2 regulation ± 2% O2 from the set value
HUMIDITY MODE

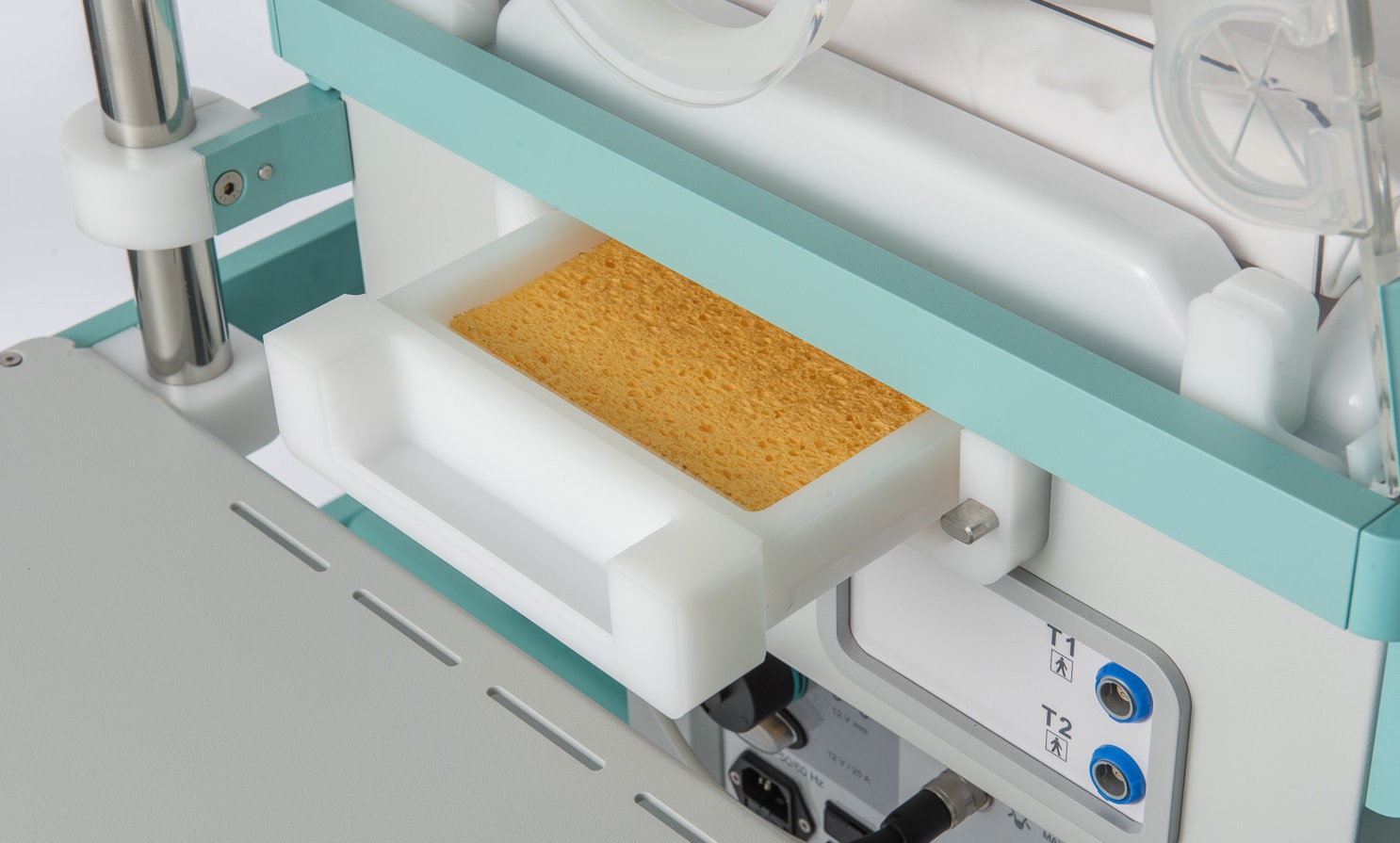

Humidity The incubator is equipped with passive humidification
Relative humidity concentration in the incubator 40 – 70% (depending on the ambient temperature, humidity and the set parameters)
