SHELLY Stationary incubator
From standard to intensive care

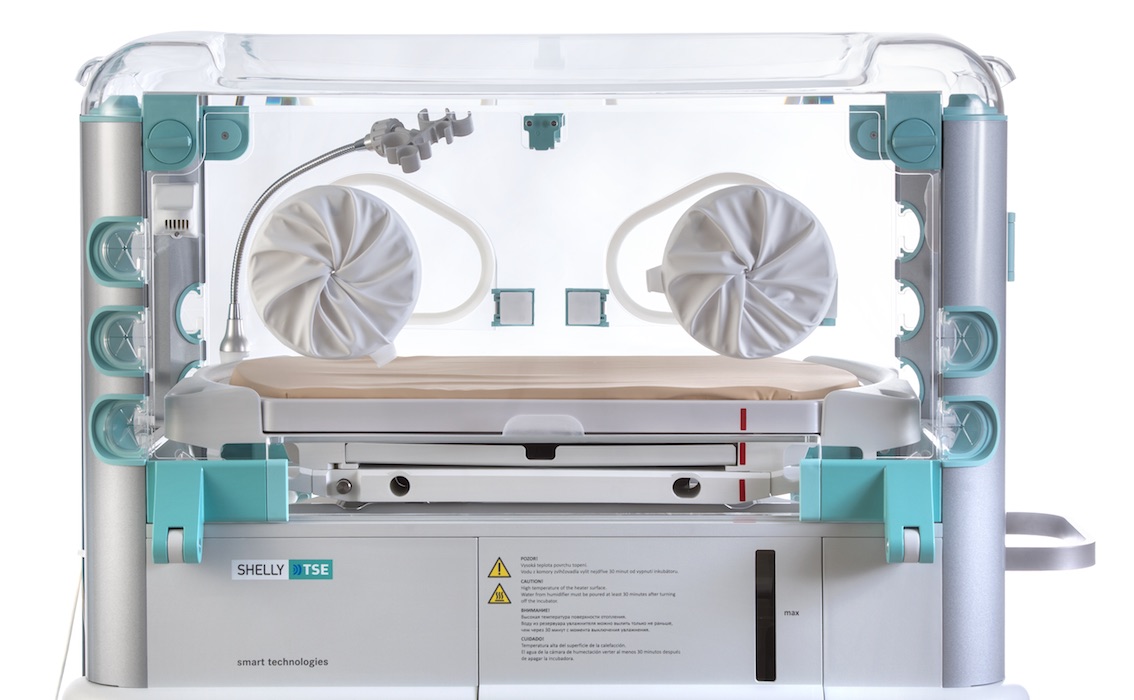

Incubator SHELLY is already the fourth generation of newborn stationary incubators of TSE production. It is intended for both intermediate and intensive care. As a modern medical product it provides high comfort for both the patient and healthcare personnel. Incubators are very variable and can be supplemented with a number of optional accessories.
The great advantage of SHELLY is the low noise level in the patient space – 38 dB only. Vital signs monitoring is optionally ensured by integrated Masimo Rainbow SET, which represents the top on the monitoring system market.
-
- SONY DSC
-
- SONY DSC
-
- SONY DSC
-
- SONY DSC
Key Features
- Control panel with colour 9″ LED display visible from long distances
- Absolute safety is provided by two independent processors and a sophisticated alarm system
- The noise level in the patient’s space is only 38 dB
- Easy cleaning and disinfection, possibility of autoclave sterilization of the humidifier chamber
- Adjustable bed, extensible to both sides, can be rotated by 45° at the patient´s head
- Air curtain, drawer for X-ray cassette, dual temperature probes
- Masimo Rainbow SET
Optional Complementary Accessories
- Dual temperature probes
- Oxygen regulation
- Monitoring of vital signs by MASIMO
- Integrated weighing scale
- Complete double plexiglass cover
- Holder of hoses for ventilation, suction and food supply
- Examination light
- IRIS hand port
- Infusion hooks
- Shelfs and rails for additional devices
- Closed storage boxes on the lower part – 2 pcs
- Backup power
- Choice of one-sided or double-sided pedals for adjustable height of undercarriage
- Antistatic wheels
- Newborn positioning aids
Technical Specifications
| Unit type identification | SI-610-1 |
|---|---|
| Power voltage |
230 V (±10%) / 50 – 60 Hz 110-115 V (±10%) / 50 – 60 Hz 120-127 V (±10%) / 50 – 60 Hz |
| Power input |
With fixed height: 550 VA With adjustable height: 600 VA |
| Maximum input via the auxiliary sockets | 100 W |
| Dimensions |
Height with fixed height chassis: 1450 mm (1705 mm with the accessory bar) Height with the height adjustable chassis: 1320 - 1520 mm (1575 - 1775 mm with the accessory bar) Length: 1150 mm Width: 610 mm Mattress: 400 x 660 x 30 mm |
| Weight |
With fixed height chassis: 96 kg With the height adjustable chassis: 106 kg |
| Noise | max. 38 dB |
| The ALARM signalizes |
- Power failure - Electronic system failure - Temperature, O2, RH sensors failure - Drop or rise of body/air temperature beyond the preset limits - Temperature increase to the emergency value - Fan failure - O2 concentration drop or rise beyond the preset limits - RH drop or rise beyond the preset limits - Humidifier failure - Scales failure - Failure of the electronic system SpO2 - SpO2 sensor failure - SpO2 drop or rise beyond the preset limits - SpHb drop or rise beyond the preset limits |
| Applied part types | BF - body temperature sensors T1, T2, SpO2 sensor |
| Appliance type | Class I |
| Electromagnetic radiation and resistance | Class A |
| Bacteriological filter | In air inlet, max. penetration 1x10⁻⁴ % |
| Max. CO2 concentration inside the patient space | 0.3 % |
| Patient's weight on the bed | max. 10 kg |
| TEMPERATURE MODE (servo controlled) | |
|---|---|
| Air temperature mode (setting range) | 20,0 °C - 37,0 °C, in steps of 0,1 °C 37,1 °C - 39,0 °C, in steps of 0,1 °C |
| Air temperature adjustment over 37.0 °C | Only upon special operator's intervention after the >37 °C key is pressed |
| Body temperature mode (setting range) | 34,0 °C - 37,0 °C, in steps of 0,1 °C 37,1 °C - 39,0 °C, in steps of 0,1 °C |
| Body temperature adjustment over 37.0 °C | Only upon special operator's intervention after the >37 °C key is pressed |
| Automatic adjustment of lower and upper alarm limits | ±2 °C from the required adjusted temperature |
| Range of displayed temperature value | 10,0 °C - 45,0 °C |
| Temperature measurement accuracy | ±0.1 °C ±1 digit |
| Temperature control accuracy | ±0.3 °C from the adjusted value |
| O2 MODE (servo controlled) | |
| O2 concentration setting (setting range) | 21 - 75 %, in steps of 1 % |
| Range of displayed O2 concentration | 10 - 100 % |
| Attainable O2 concentration inside the incubator | 75 % O2 |
| O2 concentration measurement accuracy | ±3 % ±1 digit |
| O2 regulation accuracy | ±1.5 % O2 from the adjusted value |
| RELATIVE HUMIDITY MODE (servo controlled) | |
| RH concentration (setting range) | 40 - 95 %, in steps of 1 % |
| The range of RH displayed values | 10 - 99 % |
| Attainable RH inside the incubator | 95 % * |
| RH measurement accuracy | ±5 % ±1 digit |
| RH regulation accuracy | ±5 % from the adjusted temperature |
| Water tank | 1,5 l of demineralized water |
| *See the description in Operation manual, chapter 9.6.2 Setting the required RH value | |
| WEIGHING MODE (servo controlled) | |
|---|---|
| Weighing range | max. 6 kg |
| Range of displayed weight value | 0 – 6 kg |
| Scales accuracy |
±2 g ±1 digit (from 0 kg to 1 kg) ±5 g ±1 digit (from 1 kg to 3 kg) ±10 g ±1 digit (from 3 kg to 6 kg) |
| Resolution | 1 g |
| Records | Weight trends, weight increments |
| INTEGRATED MONITORING OF VITAL FUNCTIONS MASIMO RAINBOW SET | |
| Oxygen Saturation (SpO2) | |
| Range of displayed SpO2 values | 0 - 100 % |
| Measurement accuracy, no motion (RMS) | ±3 % ±1 digit within 70 - 100 % SpO2 |
| Pulse Rate | |
| Range of displayed pulse | 25 - 240 bpm |
| Measurement accuracy, no motion (RMS) |
±3 bpm ±1 digit (No Motion) ±5 bpm ±1 digit (Motion) ±3 bpm ±1 digit (Low Perfusion) |
| PI | |
| Range of displayed PI | 0 - 20 % |
| Measurement accuracy, no motion (RMS) | ±10 % of PI |
| PVi | |
| Range of displayed PVi | 0 - 100 % |
| SpHb | |
| Range of displayed SpHb | 0 - 25 g/dL |
| Measurement accuracy, no motion (RMS) | ±1 g/dL |
